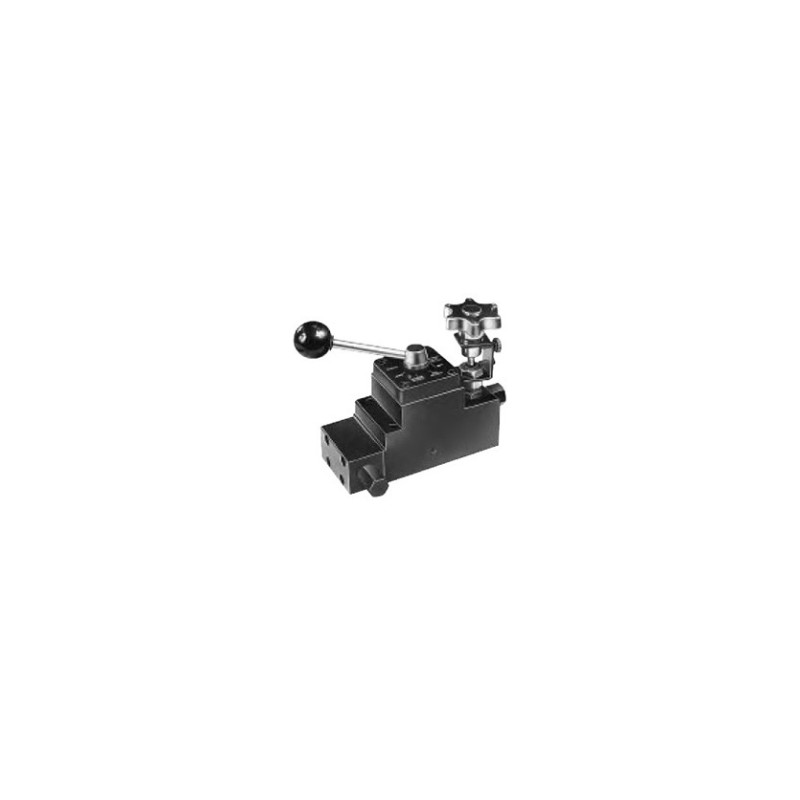

Application: Single-acting cylinders.
Actuation: Lever and adjustable, pressure compensated flow control valve.
Functions: Cylinder piston "return," "hold," "controlled advance" (pressure compensated and "advance" (full blown). Will deliver relatively constant flow regardless of pressure between 1,000 and 10,000 psi.
10,000 PSI., 3/8” PORTS, 5 GPM MAX FLOW RATE.
Used on these pumps: PA17, PA46, PA55, PE17, PE21, PE46, PE55, PE90, PE200, PG55, PG 120, PG400, PQ60 AND PQ120.
Note: PE30 and PG30 can be used with mounting adapter kit 252161.
Caution: To prevent sudden, uncontrolled descent of a load as it is being lowered, use a Load Lowering Valve (No. 9596) or Counter Balance Valve (No. 9720) in conjunction with the directional valve used in your application.
Important: Conversion kit 251528 must be used when mounting any of the valves on PA17 or PE17 pumps.
Important: When ordering any valve for a PE30 or PG30 series pump, ½” longer mounting screws are required.
For valves 9500, 9501 and 9511, order four 12001 cap screws.
For valves 9599 and 9605, order four 251078 cap screws.
For valve 9609, order four 10855, cap screws.
